Product Summary

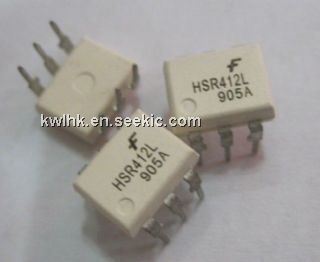

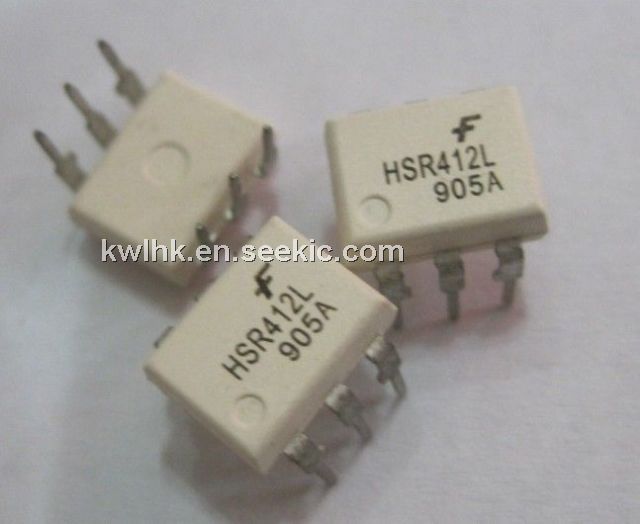

The HSR412L is a photovoltaic generator. The HSR412L is housed in a 6-pin dual-in-line package. The HSR412L employs an active current limit circuitry enabling the device to withstand current surge transients. It is ideal for: (1)On/Off Hook Switch; (2)Replacement for Mechanical Relays; (3)Dial Out Relay; (4)Ring Injection Relay; (5)General Switching; (6)Ground Start.

Parametrics

HSR412L absolute maximum ratings: (1)Storage Temperature TSTG All: -40 to +100 °C; (2)Operating Temperature TOPR All: -40 to +85 °C; (3)Lead Solder Temperature TSOL All: 260 for 10 sec °C; (4)Isolation Surge Voltage VISO All: 4000 Vac(RMS); (5)Maximum Input/Output Capacitance CIO All: 1.0 pF; (6)Maximum Input/Output Resistance RIO All: 10 Ω.

Features

HSR412L features: (1)4,000 VRMS Isolation; (2)Wide operating voltage range: 250 V (HSR312, HSR312L); 400 V (HSR412, HSR412L).; (3)Solid-State Reliability; (4)Bounce-Free Operation; (5)4000 V ESD Rating (HBM); (6)UL, CSA and BABT approval pending.

Diagrams

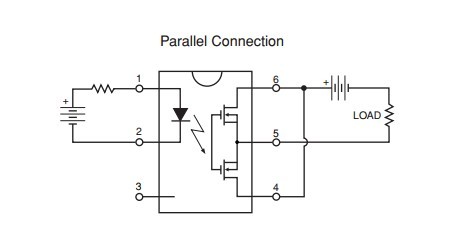

HSR412L pin connection
